WHY SUPER DUPLEX 2507/S32750 PIPE CORROSION RESISTANCE HIGH PERFORMANCE?

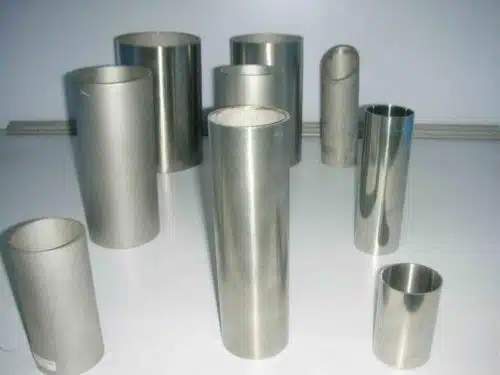

Introduction to Super Duplex 2507/S32750 Pipes
Super Duplex 2507 (UNS S32750) is a premium-grade stainless steel alloy that offers exceptional corrosion resistance combined with high mechanical strength. This material has become increasingly popular in demanding industrial applications where standard stainless steels fail to provide adequate performance.
The “super duplex” designation refers to its balanced microstructure containing approximately equal proportions of ferrite and austenite phases, which gives it superior properties compared to standard duplex and austenitic stainless steels.
Key Properties of Super Duplex 2507/S32750 Pipes
Chemical Composition-Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
The outstanding corrosion resistance of Super Duplex 2507/S32750 pipes stems from their carefully balanced chemical composition:
| Element | Content (%) | Role in Corrosion Resistance |
|---|---|---|
| Chromium (Cr) | 24.0-26.0 | Forms passive oxide layer |
| Nickel (Ni) | 6.0-8.0 | Stabilizes austenitic phase |
| Molybdenum (Mo) | 3.0-4.0 | Enhances pitting resistance |
| Nitrogen (N) | 0.24-0.32 | Strengthens and improves corrosion resistance |
| Manganese (Mn) | ≤1.2 | Austenite stabilizer |
| Silicon (Si) | ≤0.8 | Deoxidizer |
| Carbon (C) | ≤0.03 | Minimizes carbide precipitation |
| Phosphorus (P) | ≤0.035 | Controlled for weldability |
| Sulfur (S) | ≤0.02 | Controlled for hot workability |
Physical Properties- Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
| Property | Value | Unit |
|---|---|---|
| Density | 7.8 | g/cm³ |
| Melting Range | 1300-1390 | °C |
| Thermal Expansion (20-100°C) | 13.0 | μm/m·°C |
| Thermal Conductivity (20°C) | 15 | W/m·K |
| Electrical Resistivity | 0.8 | Ω·mm²/m |
| Modulus of Elasticity | 200 | GPa |
Corrosion Resistance Performance
General Corrosion Resistance-Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
Super Duplex 2507/S32750 pipes exhibit excellent resistance to a wide range of corrosive environments:
| Environment | Temperature Limit (°C) | Performance Rating |
|---|---|---|
| Seawater | 40 | Excellent |
| Sulfuric Acid (10%) | 20 | Good |
| Hydrochloric Acid (1%) | 20 | Fair |
| Phosphoric Acid (85%) | 80 | Excellent |
| Acetic Acid (100%) | 100 | Excellent |
| Sodium Hydroxide (50%) | 80 | Excellent |
Pitting and Crevice Corrosion Resistance – Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
The pitting resistance equivalent number (PREN) is a key indicator of a material’s resistance to localized corrosion:
| Material | PREN Formula | PREN Value |
|---|---|---|
| 316L | %Cr + 3.3%Mo + 16%N | 24-26 |
| 2205 | %Cr + 3.3%Mo + 16%N | 35-37 |
| 2507/S32750 | %Cr + 3.3%Mo + 16%N | 40-43 |
Stress Corrosion Cracking (SCC) Resistance- Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
Super Duplex 2507/S32750 demonstrates superior resistance to stress corrosion cracking compared to austenitic grades:
| Test Condition | 304L | 316L | 2205 | 2507 |
|---|---|---|---|---|
| 42% MgCl₂ at 143°C | Fail | Fail | Pass | Pass |
| Seawater + H₂S | Fail | Marginal | Good | Excellent |
| Caustic (NaOH) | Fail | Marginal | Good | Excellent |
Applications of Super Duplex 2507/S32750 Pipes
Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance – The exceptional corrosion resistance makes these pipes ideal for:
Oil and Gas Industry
- Subsea pipelines
- Downhole tubing
- Process piping in sour service
- Heat exchangers in offshore platforms
Chemical Processing
- Acid production plants
- Pulp and paper industry
- Desalination plants
- Flue gas desulfurization systems
Marine Applications
- Seawater piping systems
- Ballast water systems
- Offshore structural components
Comparison with Other Stainless Steels
Fabrication Considerations
While Super Duplex 2507/S32750 pipes offer outstanding performance, proper fabrication techniques are essential:
Welding
- Use matching filler metals (e.g., ER2594)
- Maintain heat input between 0.5-2.5 kJ/mm
- Keep interpass temperature below 150°C
Forming
- Cold forming requires annealing afterward
- Hot working temperature range: 1100-950°C
- Avoid temperatures between 300-950°C to prevent sigma phase formation
Heat Treatment
- Solution annealing at 1020-1100°C
- Rapid cooling (water quenching preferred)
- Avoid slow cooling through 700-900°C range
Maintenance and Inspection
Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance – To ensure long-term performance:
- Regular visual inspections for surface contamination
- Periodic cleaning in aggressive environments
- Monitoring for signs of localized corrosion
- Proper storage to prevent chloride contamination
Conclusion
Super Duplex 2507/S32750 pipes represent the pinnacle of corrosion-resistant piping materials, offering unparalleled performance in the most demanding environments. Their balanced microstructure and optimized chemical composition provide exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking while maintaining high mechanical strength. When properly fabricated and maintained, these pipes deliver reliable, long-term service in critical applications across multiple industries.
MATERIAL CHARACTERISTICS AND MICROSTRUCTURE
SUPER DUPLEX 2507 (UNS S32750) is a high-alloy super duplex stainless steel composed of 25% chromium, 7% nickel, 4% molybdenum, and 0.25% nitrogen, with a balanced dual-phase microstructure of 50% austenite and 50% ferrite. This unique structure combines exceptional mechanical strength (yield strength ≥550 MPa, tensile strength ≥800 MPa) and outstanding corrosion resistance in aggressive environments.
GENERAL CORROSION RESISTANCE
2.1 Acid Resistance – Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
SUPER DUPLEX 2507 demonstrates superior performance in both organic and inorganic acids:
- Organic Acids: Exhibits excellent resistance to acetic acid and formic acid due to its high chromium and molybdenum content.
- Sulfuric Acid: Outperforms 904L stainless steel in diluted sulfuric acid contaminated with chloride ions (e.g., 10% H<sub>2</sub>SO<sub>4</sub> + Cl<sup>−</sup>).
- Hydrochloric Acid: Suitable for diluted HCl environments (up to 10% concentration at 20°C), while 316L fails due to severe uniform or localized corrosion.
Table 1: Corrosion Rate Comparison
| Environment | 2507 (mm/year) | 904L (mm/year) | 316L (mm/year) |
|---|---|---|---|
| 10% H<sub>2</sub>SO<sub>4</sub> + Cl<sup>−</sup> | <0.1 | 0.5–1 | N/A |
| 5% HCl (20°C) | 0.05 | N/A | >1.0 |
2.2 Chloride Resistance – Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
SUPER DUPLEX 2507 exhibits exceptional resistance to chloride-induced corrosion:
- Critical Pitting Temperature (CPT): >80°C in 1M NaCl.
- Critical Crevice Corrosion Temperature (CCT): >50°C in 10% FeCl<sub>3</sub>, surpassing conventional duplex steels like 2205.
LOCALIZED CORROSION RESISTANCE
1 Stress Corrosion Cracking (SCC) – Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
The dual-phase microstructure inhibits crack propagation, delivering 3× higher SCC resistance than 304 stainless steel in chloride-rich environments.
2 Intergranular and Crevice Corrosion – Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
- Intergranular Corrosion: Low carbon content (<0.03%) eliminates carbide precipitation risks during welding or heat treatment.
- Crevice Corrosion: High PREN value (≥40) ensures resistance in chloride-laden environments.
Table 2: Critical Temperatures for Localized Corrosion
| Material | CPT (1M NaCl) | CCT (10% FeCl<sub>3</sub>) |
|---|---|---|
| 2507 | >80°C | >50°C |
| 2205 | 40–45°C | 25–30°C |
| 316L | 15–20°C | <10°C |
3 Erosion and Fracture Corrosion – Super Duplex 2507/S32750 Pipe Corrosion Resistance High Performance
SUPER DUPLEX 2507 resists erosion corrosion caused by high-velocity fluids containing particles, making it ideal for marine and chemical processing systems.
MECHANICAL PROPERTIES
The combination of high strength and ductility supports demanding industrial applications:
Table 3: Key Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength | ≥550 MPa |
| Tensile Strength | ≥800 MPa |
| Elongation | ≥25% |
| Hardness (HV) | 290–330 |
| Max Service Temp. | 316°C |
INDUSTRIAL APPLICATIONS
SUPER DUPLEX 2507/S32750 pipes are widely used in:
- Offshore Systems: Subsea pipelines, seawater cooling systems, and oil/gas umbilicals.
- Chemical Processing: Reactors and heat exchangers handling chlorinated acids.
- Desalination Plants: High-pressure reverse osmosis systems.
PROCESSING AND OPTIMIZATION
- Surface Treatment: Mirror polishing (Ra ≤0.2 μm) reduces biofilm adhesion and corrosion risks.
- Heat Treatment: Solution annealing at 1050–1120°C ensures phase balance and performance stability.
CONCLUSION
SUPER DUPLEX 2507/S32750 pipe stands as a benchmark for corrosion resistance in extreme environments, offering unmatched high performance against chloride-induced pitting, SCC, and *acid corrosion. Its dual-phase microstructure and optimized alloy composition make it indispensable for critical applications in energy, marine, and chemical industries.
