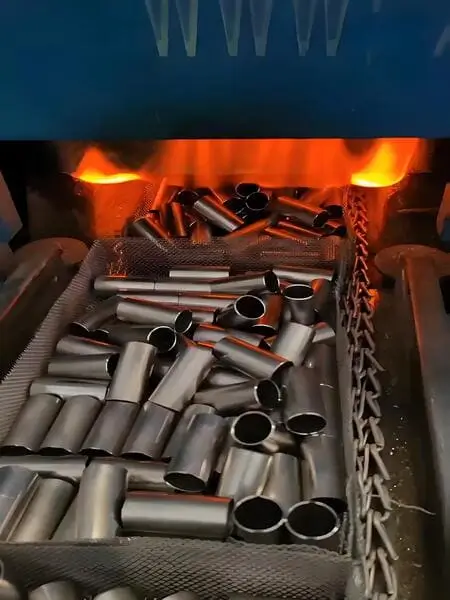

What is Stainless Steel Pipe Fittings Quenching

stainless steel pipe fittings quenching is the controlled ‌rapid cooling‌ from the solution annealing temperature (typically >1040°C). Its purpose is to:

‌Suppress carbide precipitation‌ at grain boundaries (preventing sensitization in austenitic grades).
‌Prevent excessive grain growth‌.
For ‌martensitic/hardenable grades‌, achieve ‌diffusionless transformation‌ to martensite, increasing hardness/strength.

Heat treatment, particularly quenching, is critical for achieving the desired mechanical properties in stainless steel pipe fittings. However, this process is susceptible to various defects that can compromise product integrity and lead to rejection. This article examines prevalent quenching-related issues—overheating, overburning, and deformation—alongside scientifically validated preventive and remedial measures. Special attention is given to duplex and super duplex pipe fittings due to their complex metallurgy and industrial significance.

‌1. Overheating and Overburning: Critical Temperature Management Failures

‌Overheating‌ occurs when pipe fittings exceed optimal austenitizing temperatures or endure prolonged dwell times. ‌Overburning‌, a more severe manifestation, involves localized melting or severe oxidation at grain boundaries, often irreversibly damaging the microstructure. These defects primarily stem from:

‌Inaccurate Temperature Control:‌ Deviations exceeding +10-15°C above recommended ranges significantly increase risk.
‌Extended Soaking Duration:‌ Holding fittings at peak temperature beyond necessary homogenization time.
‌Furnace Hot Spots:‌ Uneven heating or proximity to heating elements (>75 mm for direct radiant heating).
‌Sensor/Instrumentation Drift:‌ Uncalibrated thermocouples or controllers providing false readings.

‌Table 1: Preventive Measures for Overheating & Overburning‌

‌Cause‌	‌Preventive Strategy‌	‌Impact‌
Excessive Temperature	Strict adherence to alloy-specific quenching schedules; ±5°C tolerance advised.	Prevents grain coarsening, preserves corrosion resistance.
Prolonged Soaking	Optimize dwell time based on section thickness; use process simulation software.	Minimizes energy use, reduces oxidation/decarburization.
Uneven Heating	Strategic fixture design; maintain ≥100 mm clearance from heating elements.	Ensures uniform austenitization, avoids localized overburning.
Instrumentation Error	Implement quarterly NIST-traceable calibration; redundant sensors for critical zones.	Guarantees ≤1% temperature measurement accuracy.

‌Mitigation Pathways:‌

‌Overheated Fittings:‌ A full cycle involving 1-2 normalization or subcritical annealing treatments (e.g., 850-900°C for austenitic grades) effectively refines coarse grains. Subsequent re-quenching using validated parameters typically restores target properties.
‌Overburned Fittings:‌ Metallurgical damage is often catastrophic. Chemical analysis and macro-etching confirm severity, but scrapping is usually the only viable recourse to prevent in-service failures.

‌2. Quenching Deformation: The Challenge of Dimensional Integrity

Distortion manifests as warping, bending, or ovality in ‌stainless steel pipe fittings quenching‌ post-quench, driven by non-uniform thermal and transformational stresses. Key contributors include:

‌Asymmetric Geometry:‌ Thick-thin transitions (e.g., reducer tees) or unbalanced masses (e.g., lateral outlets) induce uneven cooling rates.
‌Residual Machining Stress:‌ Lathe turning or milling stresses not relieved prior to quenching (e.g., lack of 650°C/2h stress relief).
‌Non-Uniform Heating/Cooling:‌ Poor furnace airflow, clustered loading, or inconsistent quenchant agitation near fittings.
‌Improper Handling:‌ Distortion from self-weight sag during heating or turbulent quenchant flow impacting thin sections.
‌Phase Transformation Stresses:‌ Rapid martensite formation in martensitic grades (e.g., ASTM A403 WP7) or sigma phase precipitation in ‌duplex pipe fittings‌ exacerbates volumetric changes.

‌Table 2: Deformation Countermeasures for Stainless Steel Pipe Fittings Quenching‌

‌Cause‌	‌Preventive Action‌	‌Remedial Technique‌
Design-Induced Stress	Finite Element Analysis (FEA) for thermal simulation; uniform wall thickness design.	Hot/cold straightening (≤400°C for austenitics); requires re-solution annealing.
Machining Residual Stress	Mandatory stress-relieving (600-650°C) before final machining/quenching.	Localized thermal correction (limited application).
Thermal Gradient Issues	Preheat stages (450°C, 750°C); forced-convection furnaces; directed quenchant nozzles.	Isostatic pressing (HIP) for severe cases (cost-intensive).
Handling & Fixturing	Vertical radiant tube heating; polymer-coated fixture points; basket quenching.	Precision mechanical straightening with strain limitation.
Transformation Stresses	Martempering (‌marquenching‌) or austempering for thick sections; slow oil quench for duplex grades.	Re-heat treatment with modified cooling profile.

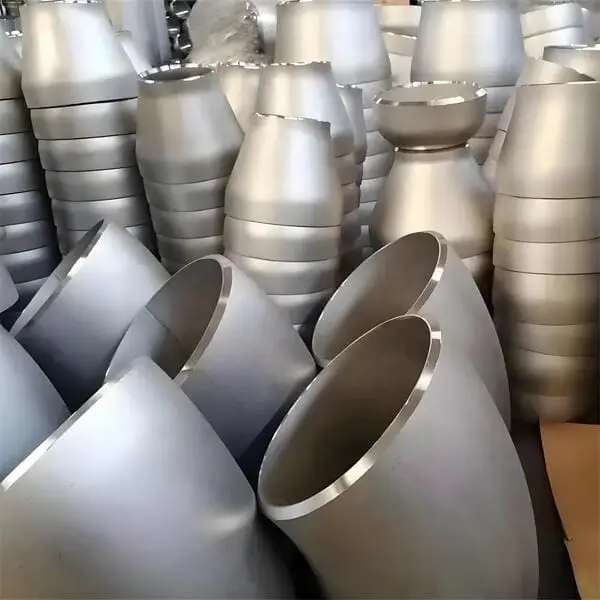

‌Advanced Process Optimization: Duplex & Stainless Steel Pipe Fittings Quenching‌

‌Marquenching:‌ Interrupting cooling near Ms point (e.g., 280-350°C for 410 SS) in salt baths minimizes thermal shock in ‌duplex pipe fittings quenching‌ while ensuring full hardness.

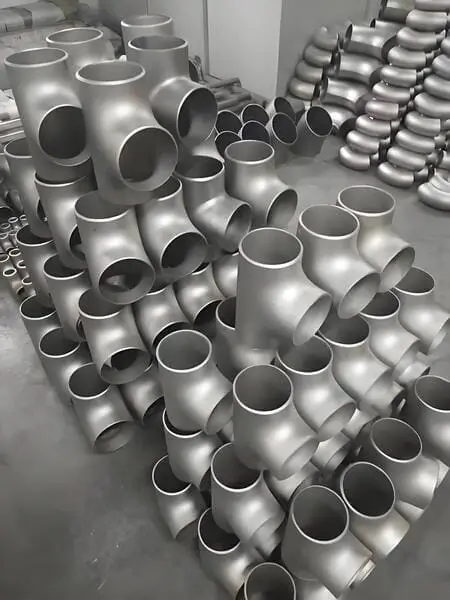

‌High-Pressure Gas Quenching (HPGQ):‌ Using inert gases (N₂, He) at 10-20 bar provides uniform cooling for complex ‌super duplex pipe fittings quenching‌, reducing distortion by 40-60% vs. oil.
‌Fixturing:‌ Inconel 718 support frames constrain fittings during pressurized gas quenching, restricting elastic deformation.

‌3. Integrated Quality Assurance Framework

Duplex & Stainless Steel Pipe Fittings Quenching

Proactive defect management necessitates a holistic approach:

‌Digital Process Records:‌ Cloud-based monitoring of furnace temperature profiles (±3°C resolution) and quench delay times (<15 sec).
‌Material Traceability:‌ Laser-marked heat numbers linked to certification (EN 10204 3.1) enabling defect root-cause analysis.
‌Non-Destructive Testing (NDT):‌ Post-quench eddy current testing for surface cracks and automated laser scanning for dimensional compliance (≤0.1 mm/m tolerance).
‌Quenchant Management:‌ Regular viscosity and cooling curve analysis (ISO 9950) to maintain consistent severity.

‌Conclusion

Mastering quenching processes for ‌stainless steel pipe fittings Quenching‌, particularly demanding alloys like duplex and super duplex, demands precision in temperature control, cooling uniformity, and stress management. Implementing the outlined preventive strategies—validated thermal protocols, advanced quenching methods like marquenching or HPGQ, and robust fixturing—drastically reduces rejection rates. Crucially, a structured quality framework integrating digital oversight and NDT ensures consistent output. Continuous refinement of these methodologies remains paramount for advancing the reliability of high-performance piping systems. While occasional defects like overburning necessitate scrapping, systemic adoption of these best practices ensures optimal microstructure and dimensional stability across production batches.
